If you are interested in bulk orders of 12 or more batteries, please reach out to us at 701-232-0661 or info@badlandbatteries.com for information on bulk order pricing.
WARNING: This product can expose you to chemicals including nickel, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov.
Technical Specifications
| Specifications | |
| Cell Configuration | 6S1P |
| Nominal Capacity | 17000mAh |
| Nominal Voltage | 22.8V |
| Width | 73 mm (2.8 in.) |
| Length | 196 mm (7.7 in.) |
| Height | 76 mm (2.9 in.) |
| Weight | 2,000g (4.4 lbs.) |
| Power Connector | AS150U-F |
| Balance Connector | JST-XHP (7-pin) |
| Discharging Conditions | |
| Standard Current | 17000mA |
| Standard Current Rate | 1C |
| Cut-off Pack Voltage | 18.0V |
| Cut-off Cell Voltage | 3.0V |
| Continuous Current | 136000mA |
| Continuous Current Rate | 8C |
| Burst Current | 255000mA |
| Burst Current Rate | 15C |
| Burst Duration | <3 seconds |
| Min. Discharge Temperature | -20°C (-4°F) |
| Max. Discharge Temperature | 60°C (140°F) |
| Charging Conditions | |
| Standard Current | 17000mA |
| Standard Current Rate | 1C |
| Cut-off Pack Voltage | 26.1V |
| Cut-off Current | 340mA |
| Cut-off Current Rate | 0.02C |
| Ending Time | 1.0 hour |
| Cut-off Cell Voltage | 4.35V |
| Min. Charge Temperature | 10°C (50°F) |
| Max. Charge Temperature | 65°C (149°F) |
| Max. Charge Current | 34000mA |
| Max. Charge Current Rate | 2C |
| Storage Conditions | |
| Voltage | 22.8V |
| <1 month | -20°C - 45°C (-4°F - 113°F) |
| <3 months | -20°C - 30°C (-4°F - 86°F) |
| <12 months | 22°C - 28°C (71.6°F - 82.4°F) |

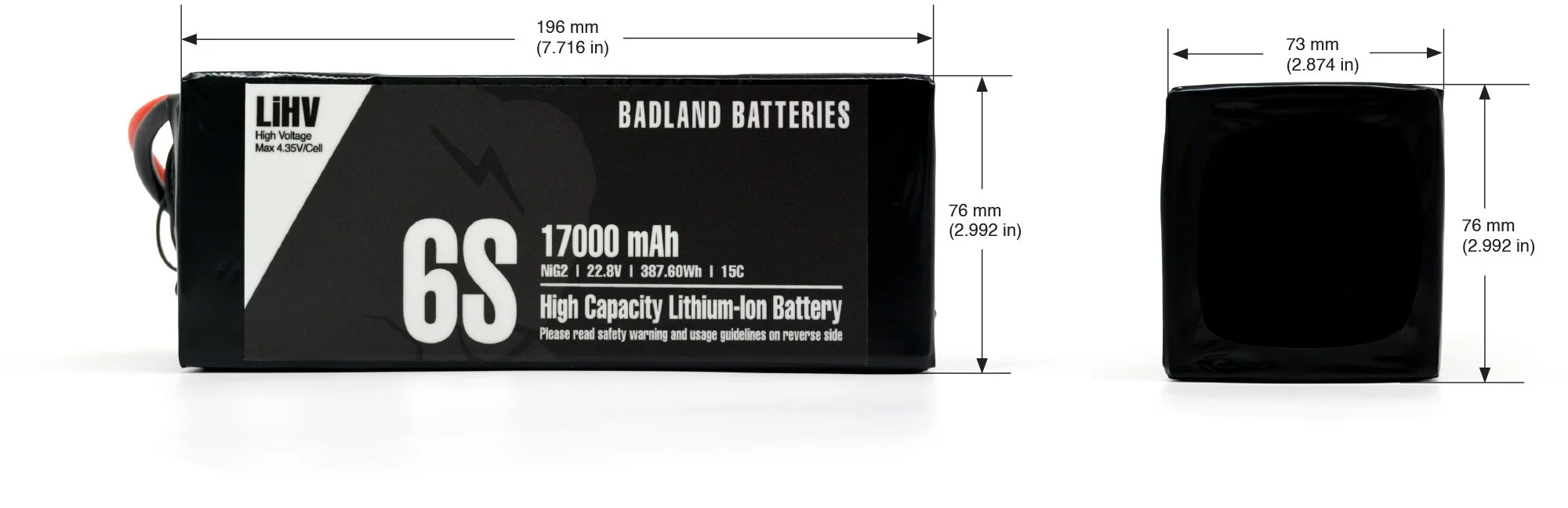

Dimensions

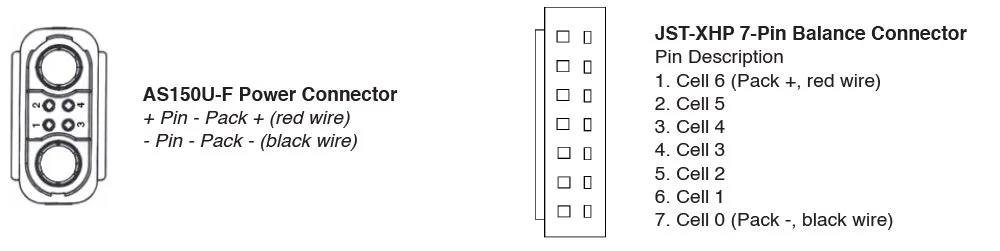

Connections
CAUTION: The XT90 is available as an alternative power connection option, however is rated for 40A continuous (90A peak)
Documentation
-
All instructions and precautions must be read carefully and followed exactly before product use. Learn how to get started with your Badland 17000mAh 6S battery here.
-
Do not use this product until you have carefully read the warranty agreement. Learn more about the Badland 6S battery warranty here.
-
A printable and complete technical spec sheet for the Badland Batteries 6S 17000mAh battery can be found here.
-
All Badland Batteries packs undergo thorough UN 38.3 testing by a third party. To review the test results click here.
