Badland Batteries 23000mAh 22.8V 15C 6S battery

$799.99

Limit 12 per order

The Badland Batteries 23000mAh 6S lithium-ion battery is designed, manufactured, shipped and supported in the United States. The battery is made for drones and UAS platforms.

Features

Lightweight shrink-wrap packaging
Fuse for short circuit protection
Long cycle life
Multiple power connections available
UN 38.3 third-party certified
Manufactured in Fargo, N.D.
USA-based customer service

Power Connector:

The Badland Batteries 23000mAh 6S lithium-ion battery is designed, manufactured, shipped and supported in the United States. The battery is made for drones and UAS platforms.

Features

Lightweight shrink-wrap packaging
Fuse for short circuit protection
Long cycle life
Multiple power connections available
UN 38.3 third-party certified
Manufactured in Fargo, N.D.
USA-based customer service

If you are interested in bulk orders of 12 or more batteries, please reach out to us at 701-232-0661 or info@badlandbatteries.com for information on bulk order pricing.

Technical Specifications


    Specifications

    Cell Configuration
    6S1P

    Nominal Capacity
    23000mAh

    Nominal Voltage
    22.8V

    Width
    67.5 mm (2.6 in.)

    Length
    215.8 mm (8.5 in.)

    Height
    97.5 mm (3.8 in.)

    Weight
    2,750g (6 lbs.)

    Power Connector
    AS150U-F

    Balance Connector
    JST-XHP (7-pin)

    Discharging Conditions

    Standard Current
    23000mA

    Standard Current Rate
    1C

    Cut-off Pack Voltage
    18.0V

    Cut-off Cell Voltage
    3.0V

    Continuous Current
    138000mA

    Continuous Current Rate
    6C

    Burst Current
    345000mA

    Burst Current Rate
    15C

    Burst Duration
    3 seconds

    Min. Discharge Temperature
    -20°C (-4°F)

    Max. Discharge Temperature
    60°C (140°F)


    Charging Conditions

    Standard Current
    23000mA

    Standard Current Rate
    1C

    Cut-off Pack Voltage
    26.1V

    Cut-off Current
    460mA

    Cut-off Current Rate
    0.02C

    Ending Time
    1.0 hour

    Cut-off Cell Voltage
    4.35V

    Min. Charge Temperature
    10°C (50°F)

    Max. Charge Temperature
    65°C  (149°F)

    Max. Charge Current
    46000mA

    Max. Charge Current Rate
    2C

    Storage Conditions

    Voltage
    22.2V

    <1 month
    -20°C - 45°C (-4°F - 113°F)

    <3 months
    -20°C - 30°C (-4°F - 86°F)

    <12 months
    22°C - 28°C (71.6°F - 82.4°F)

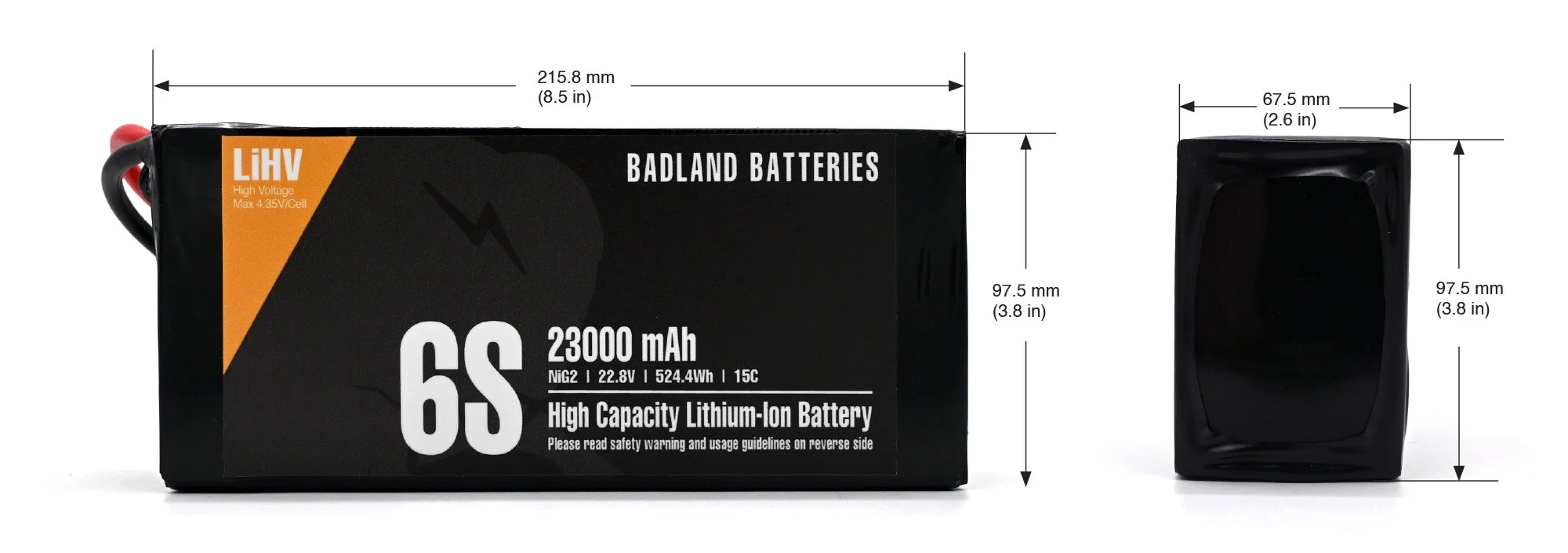

Dimensions

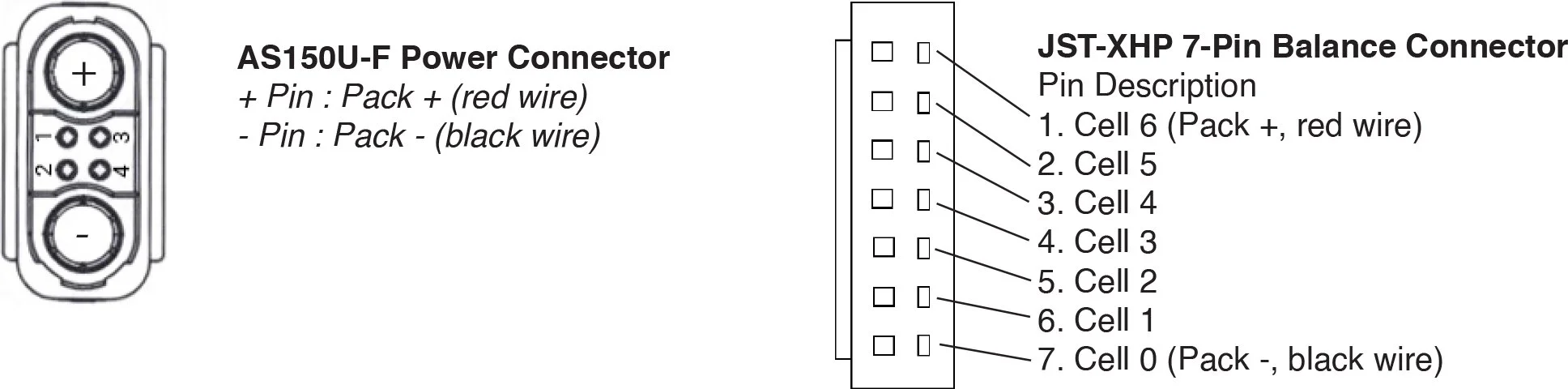

Connections

CAUTION: The XT90 is available as an alternative power connection option, however is rated for 40A continuous (90A peak)

Documentation

All instructions and precautions must be read carefully and followed exactly before product use. Learn how to get started with your Badland 23000mAh 6S battery here.
Do not use this product until you have carefully read the warranty agreement. Learn more about the Badland 6S battery warranty here.
A printable and complete technical spec sheet for the Badland Batteries 6S 23000mAh battery can be found here.
All Badland Batteries packs undergo thorough UN 38.3 testing by a third party. To review the test results click here.

WARNING: This product can expose you to chemicals including nickel, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov.

Packs are designed, tested, and assembled in the US with globally sourced parts.
